KYTOLA金属表管流量计,型号 ML

Overview

Metal Tube flow meter model ML s designed for medium and large liquid flows in rough conditions. It is compatible with a wide range of liquids. Reliable and accurate flow measurement is based on a variable area metering principle using a free-floating float.The ML meter withstands high pressure and has excellent temperature resistance. Typical applications are found in chemical and petrochemical industries, power plants and general flow measurement.


在线订购
Technical data
Flow tube    Stainless Steel AISI 316L
ConnectorsStainless Steel AISI 316L
FloatStainless Steel AISI 316L
Display housingAluminium (*Stainless Steel AISI 316L)
Housing windowSafety glass
SealsViton®
Pressure classDIN/EN flanges PN40
ANSI/ASME flanges class 150 or class 300 (ML100: 150 lbs)
Female threads 40 bar
Maximum temperature+110°C without alarm sensors
+100°C with NAMUR alarm sensors
+80°C with PNP/NPN alarm sensors
ConnectionsDIN/EN 1092-1 PN40 form B1 (raised face) flange  (ML100: PN16)
ANSI/ASME B16.5 class 150 raised face flange
ANSI/ASME B16.5 class 300 raised face flange
G/NPT female thread 40 bar (only ML25, ML50)
Weight  3.7 - 15.9 kg depending on model (aluminium display/housing, stainless steel display/housing add 1,6 kg).
Accuracy±5% F.S. (H₂O at +20°C)
*) Special construction on request

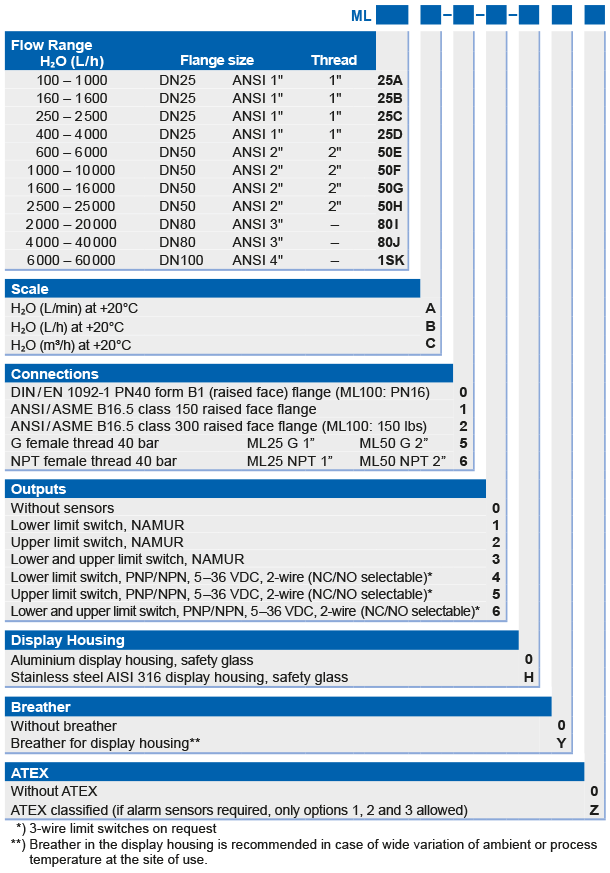

ml product key
