主要特点
• 较大的粘度范围 30—1000 cSt
• 测量不受粘度变化影响
• 脉冲输出
• 准确度: 度数的±0.5%
• 更大压力 10 bar
• 更大温度 80°C
应用
• 润滑油监控
• 工业用油测量
• 流程控制
测量范围
• 油
min 10– 120 L/min,
max 20–200 L/min
表体
• 铝
接口
• BSP 或者 NPT 1½”
选项
• 多款可选传感器
Overview

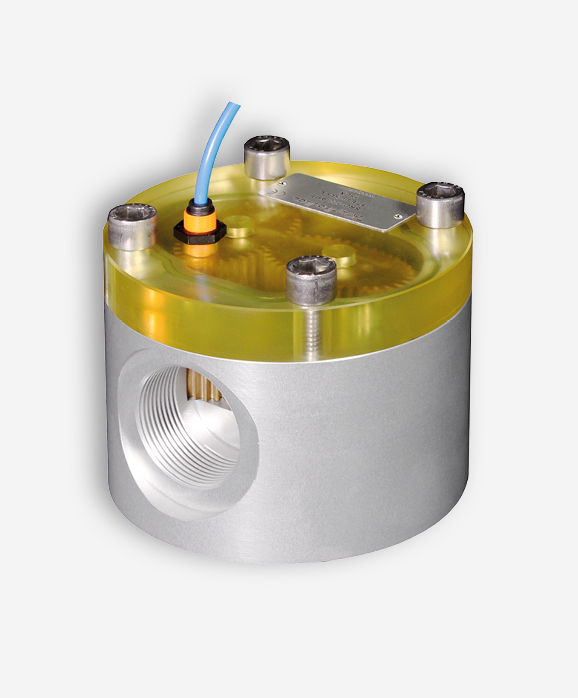

The Kytola model SRO Oval Gear Flow Meter is designed for oil flow measurement at high flow rate in demanding industrial environments.
The model SRO oval gear meter is a positive displacement meter, which always shows the correct flow rate regardless of oil temperature or viscosity changes.
Typically the SRO positive displacement flow meter for oil is used in lubriation monitoring, industrial flow monitoring and process control.

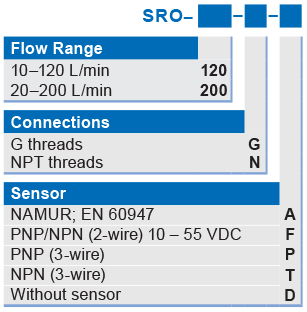

| Technical Data | ||||||||
| Model | SRO-120 | SRO-200 | ||||||
| Flow range | 10 - 120 L/min | 20 - 200 L/min | ||||||
| Weight | 4 kg | 5 kg | ||||||
| Connections | G or NPT 1½" | |||||||
| Sensor | NAMUR; EN 60947 (*other types of inductive proximity sensor) | |||||||
| Maximum pressure | 10 bar (*20 bar) | |||||||
| Max. temperature | +80°C | |||||||
| Viscosity range | 30 - 1000 cSt | |||||||
| *Special construction on request | ||||||||
